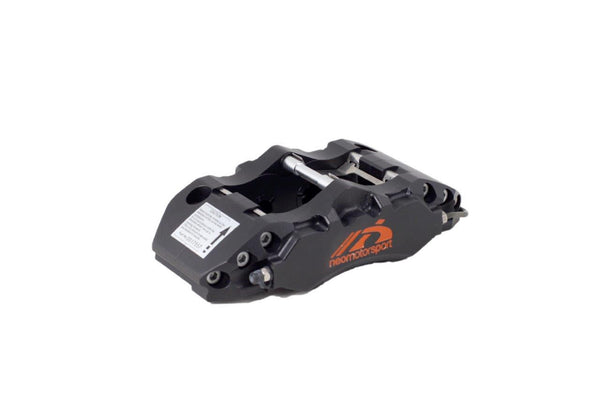

NEO Motorsport R404 (4 Pistons) Rear Brake Caliper

NEO Motorsport R404 (4 Pistons) Rear Brake Caliper

NEO Motorsport

R404 Caliper

When it comes to rear brake usage, NEO has developed a special caliper for enthusiast seeking to maximize rear stopping performance. This caliper features advanced internal cooling design allowing minimal air flow required to properly cool the caliper caused from heavy brake usage. Designed to work in conjunction with any of our F400 and F500 series calipers, R400 series caliper is the answer to your braking needs.

- Made from solid aluminum alloy billet
- Extra hard anodized (powder coating option available)
- Inner multi-piston seals

Recommended For

Touring Cars / GT Cars / Time Attack Cars / Ultra-High Performance Street Cars

Specifications

Piston number 4 Disc Ø (min-max) 330-356 mm
Disc Depth 45mm Weight 2.1 kg
Mounting Type Radial Piston Layout (Diameter in mm) 28/28
Pad Code NEO400R Pad Area 40 cm²
Pad Choice .10S / .10G Pad Depth 39mm
Color
Orange
Black
White
